The CANNON SNOOP is a long-endurance VTOL fixed wing UAV with long flight times.
CANNON SNOOP is equipped with a power management module, locking propeller function, as well as lightweight and durable carbon fiber material to give you a longer flight time.
The SNOOP is available in 2 wingspans, 1.7m and 2.3m.

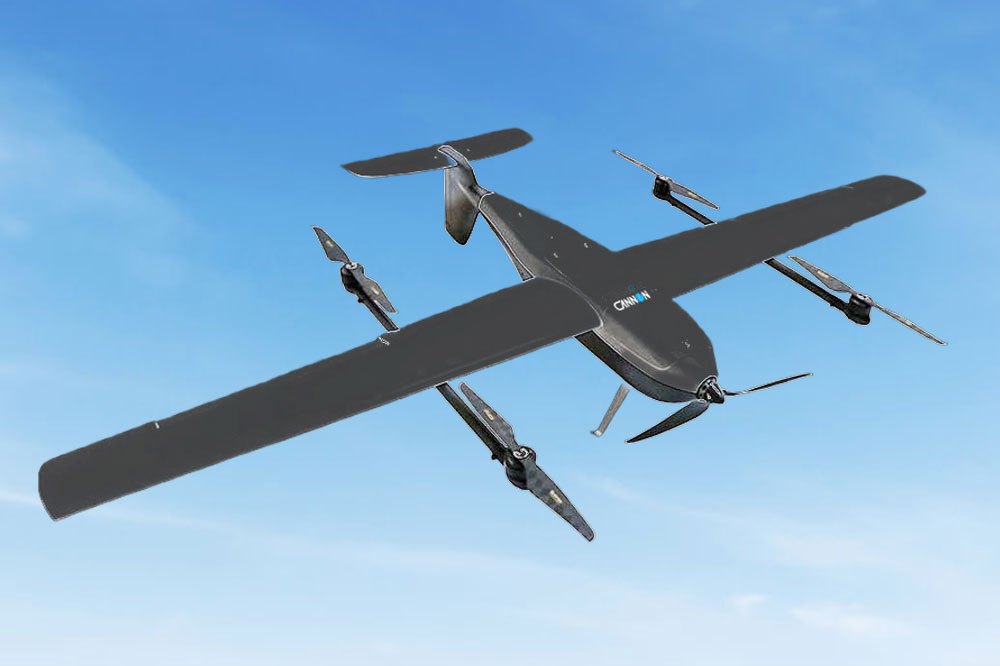

The SNOOP 24 is the bigger brother to the SNOOP 18 VTOL fixed wing UAV with even longer flight times.
SNOOP 24 shares many of the great features of its smaller sibling the SNOOP 18, but boasts a greater wingspan, operating ranges, speeds and battery life.
The SNOOP 24 also offers a greater payload capacity.
Combines vertical take-off and landing with fixed wing flight efficiency
Complete, Switch and Go
Light weight frame - easy to carry and transport
Rapidly deployed, convenient
Fully integrated ISR (Intelligence, Surveillance , Reconnaissance)
Provides quick, out of the box, flight operation
Safe, Reliable, Stable
Easy to operate
Electric propulsion
Full product support
| Model | CANNON SNOOP 18 |
|---|---|
| Frame Length | 1250mm |
| Wingspan | 2300mm |
| Frame Weight | 2.0kg |
| Take-off Weight | 12.5kg |
| Frame Material | Carbon Fiber |
| Flight Time | 240mins (No Payload) 180mins (1.5kg Payload) |
| Payload | 2.5kg |
| Max Range | 240km |
| Wind Resistance | Level 5 |
| Working Temperature | -10C to 40C |
| Control Range | 10 - 30km |
| Cruising Speed | 18 - 20m/s |
| Max Flying Speed | 35m/s |
| Max Altitude | 4500m |
| Recommended Battery | 12s, 22000mah 12s, 27000mah 12s, 30000mah |
